Genuine Wireless World

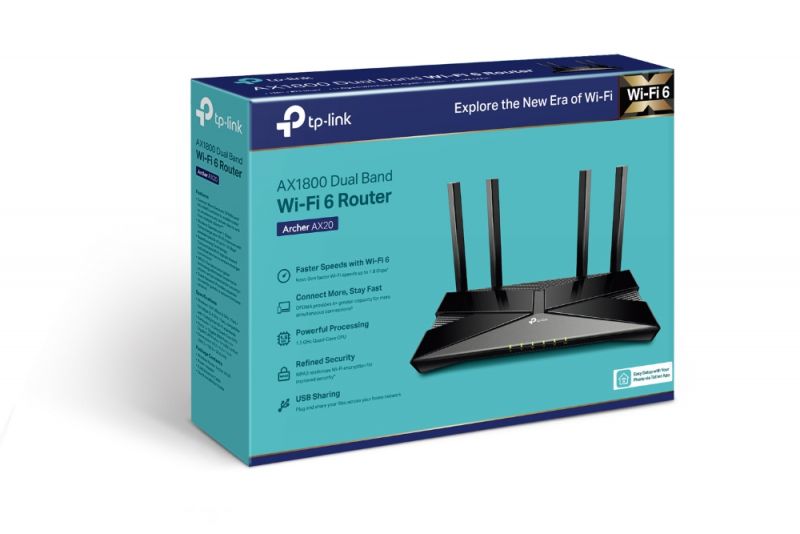

AX1800 Dual-Band Wi-Fi 6 Router

AX1800 Dual-Band Wi-Fi 6 Router

Regular price $ 140.76
Regular price Sale price $ 140.76
Sale Sold out

Specification

WIRELESS
Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
3 Bedroom Houses

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to
cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to
expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity
High

Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode

HARDWARE
Processor
1.5 GHz Quad-Core CPU
Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports
USB Support
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Buttons
WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
Power
12 V  1.5 A

SECURITY
WiFi Encryption
WPA
WPA2
WPA3
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP

SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management
Tether App
Webpage
Check Web Emulator>

PHYSICAL
Dimensions (W×D×H)
10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package Contents
Wi-Fi Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+,
or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
